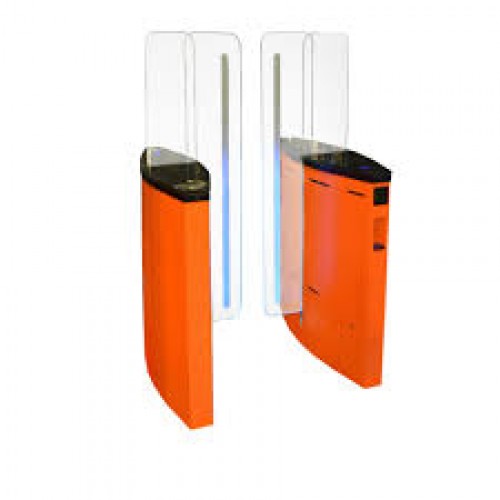

JETPAN
Category Speed Turnstiles
Brand TISO
Jetpan is ideally suited in areas where there is unmanned security the higher wings prevent vaulting over the turnstile. The Jetpan is also fitted with
optical sensors to prevent tailgating.
The contemporary design, appearance and
functionality makes the Jetpan suitable for a variety of building entrances, such as banks, utility companies and high end commercial buildings.
Access can be controlled by a variety of measures including card readers, bio metrics or the manual

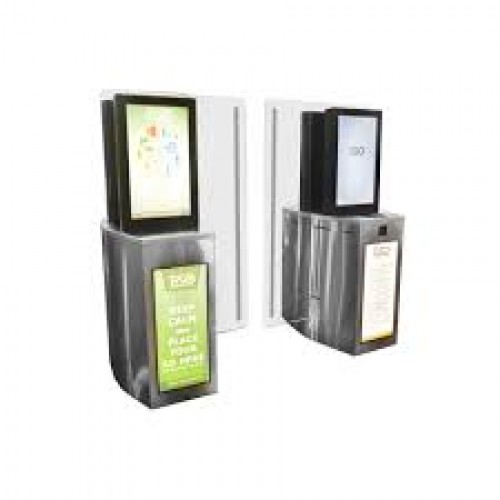

control panel. Optional customisation includes modification for lift designation screens, card collectors and bar code readers.

Advantages:
• Jetpan equipped with sensors that allows to detect tailgating;
• Ultra quite direct drive unit;
• Successful combination of affordable price and high quality;
• Customized surface finish and top lid;
• Steadfast housing suitable for high traffic areas;
• Solution for disabled and trolley access;
• Can be integrated with any type of access control systems;
• Low power consumption;
• Low noise system operation;
• Can be mounted on a mobile platform (TiSO Frame-M).

Standard:
• Wired remote control panel.

Unit dimensions (WxLxH), mm : Jetpan - 1082x1000x1320 Jetpan 900 - 2108x1000x1522
Crossing capacity, pers/min : Jepan - 30 Jetpan 900 - 15
Opening/Closing, sec : Jetpan - 2,0 Jetpan 900 - 4,0
Passage width, mm : Jetpan - 500 Jetpan 900 - 900
Weight, kg (not more) : Jetpan - 450 Jetpan 900 - 810
Mechanism : Motorized
Standard housing : Brushed SS AISI 304
Available housing : Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL
Top lid : Stainless steel top Solid glass top
Voltage : from the AC (100–240) V, 50/60 Hz from a DC source 12 V
Maximum power consumption, W/pass : 155
MCBF, cycles : 1 500 000
Enclosure rating : IP41
Temperature range, °С : +5 / +40
