IP-RFL200 Standalone Proximity Access Controller
Category Standalone Controller
Brand IDTECK
TwitterFacebookBookmarkMail
  • FEATURE
  • SPECIFICATION
  • DOWNLOAD
  • TECHNICAL SUPPORT
• 125KHz Standalone Proximity Access Controller
• ASK [EM] Format
• IP-RFL200: Standalone / 512 Users including One Master Card
• IP-RFL200C: Network Communication via RS485 (Max.255ch) TCP / IP (External LAN Converter required)
• IP-RFL200C: 512 Users / 256 Event Buffers
• Direct Control of Door Lock
• Power Fail Safe or Power Fail Secure Locks selectable
• Solid Epoxy Potted
• Waterproof
• Warranty: Life Time
Compatible Software: STAR RFL200C
* Comparison Table

IP-RFL200 Standalone including One Master Card
Door Open Time: 5sec. (fixed)
IP-RFL200C Network Communication via RS485
Door Open Time: 1{99sec. (programmable)

* Specifications

Model IP-RFL200 IP-RFL200C
CPU Dual 8bit Microprocessor
Memory Program 64 KByte Flash ROM
Data 4KByte EEPROM
User 512 Users
(including 1 Master Card)
512 Users
Event Buffer N/A 256 Event Buffers
Read Range IPC80 / IPC170: Up to 4 inch (10cm)
Reading Time (Card) 30ms.
Door Open Time 5sec. (fixed) 1{99sec.
(programmable)
Power / Current DC 12V / Max.150mA
Communication N/A RS485 (Max.255ch)
TCP/IP (External LAN
Converter required)
Baud Rate N/A 9,600bps, 10/100Mbps
Input Port 3ea
(Exit Button, Door Sensor, Lock Type Select (Powe Fail Safe / Power Fail Secure))
3ea
(Exit Button, Door Sensor, Aux#1)
Output Port 2ea (TR Output / DC 12V{18V,
Rating Max.2A, Lock Output)
LED Indicator 9 Array LED Indicators (Red and Green)
Beeper Piezo Buzzer
Operating
Temperature
Controller -20°C { +50°C
RF Reader -40°C { +70°C
Operating Humidity 10% to 90% relative humidity
non-condensing
Color Dark Pearl Gray
Material Polycarbonate
Dimension (W x H x T) 45mm x 124m x 19.64mm
Weight 80g
Certification FCC, CE, KCC, RoHS

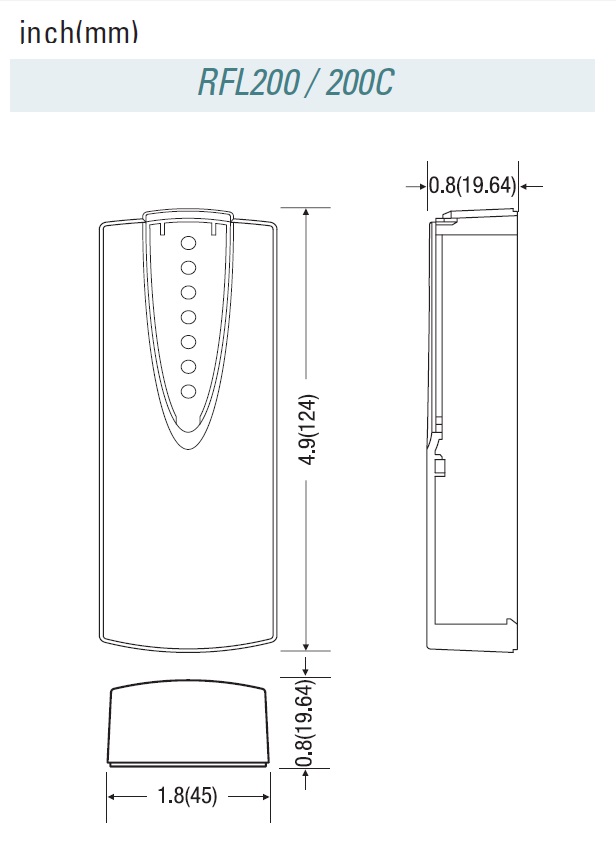

* Dimensions
