FINGER006SR
Category Biometric Readers, Sensors & Modules
Brand IDTECK

Model

FINGER006SRB
CPU
32bit ARM9, Dual 8bit
Microprocessor
Memory
Module
Finger
print
module
Program
Memory
1MByte Flash Memory
Data
Memory
1MByte / 2MByte / 4MByte
Flash Memory
Controller
Program
Memory
128KByte Flash Memory
Data
Memory
1MByte Flash Memory
Fingerprint User
Unlimited Fingerprint Users
Fingerprint
Templates Size
400Bytes for 1 Fingerprint Template
on the Smart Card
Read Range
IHC80 : Up to 2 inch (5cm)
ISC80 : Up to 4 inch(10cm)
Reading Time (Card)
30ms
Verification Time /
Identification Time
Less than 1sec.
Power / Current
DC 12V / Max.300mA
Communication
RS232 / RS422 (Max.32ch)
Baud Rate
Serial
9,600bps (default) /
4,800bps / 19,200bps /
38,400bps / 57,600bps /
115,200 (selectable)

Ethernet
10/100Mbps
Input Port
2ea: Error-Input, OK-Input
Output Port
3ea: Error-Output , OK-Output,
Temper-Output (Open Collector Output)
Output Format
26bit Wiegand
LCD
Character LCD (2 Lines x 16 Char)
/ 2.62” x 0.55” (65.6mm x 13.8mm )
Screen
Keypad
16 Key Numeric Keypad with
Back Lighting
LED Indicator / Beeper
7 Array LED Indicators
Operating
Temperature
 Fingerprint
Module		 -20 ° to +60 ° C
LCD
0 ° to +50 ° C
RF Reader
-35 ° to +65 ° C
Operating Humidity
10% to 90% relative humidity
non-condensing
Color / Material
Dark Pearl Gray / Polycarbonate
Dimension (W x H x T)
/ Weight
161.5mm x 134mm x 48.5mm
/ 547g
Certification
FCC, CE, KCC, RoHS


* Finger Module Specifications

Resolution 500 dpi
Capture Image Size 640 x 480 pixels
Extraction Image Size 260 x 300 pixels
Sensing Area 15mm X 18.5mm
Scanner High Quality Optical Sensor
FAR : False Acceptance Ratio 0.001%
FRR : False Reject Ratio 0.1%
EDS : Elecro Static Discharge ±8KV

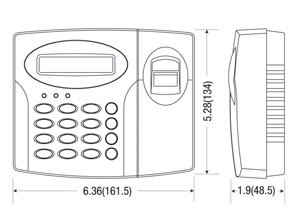

* Dimensions
