General features
- Reverse transfer printing, using color dye sublimation and resin monochrome retransfer
- Dual-sided printing (standard)
- Over the edge printing
- Using color dye sublimation and resin monochrome retransfer
- 600 dpi print head (23.6 dots/mm)
- Bitmap: 24 bits, 16 million colors
- Printout: Y/M/C 256 level
- 64 MB of memory (RAM)
Printing performances1
- Full card:
- Single side (YMCK): 25 s/card - 144 cards/hour
- Dual side (YMCKK): 37.5 s/card - 96 cards/hour

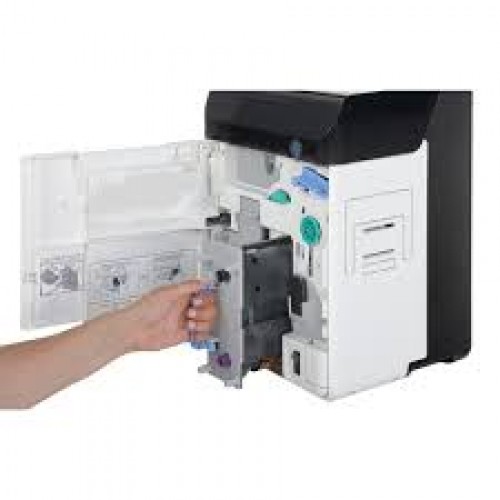

Additional encoding modules
- Available modules:
- Magnetic stripe encoder ISO 7811
- Dual contact and contacless encoder
- Encoder connectivity: internal USB hub, 1 port available
- Encoding options can be combined
- Factory installed or installed on site for contact and contactless encoders

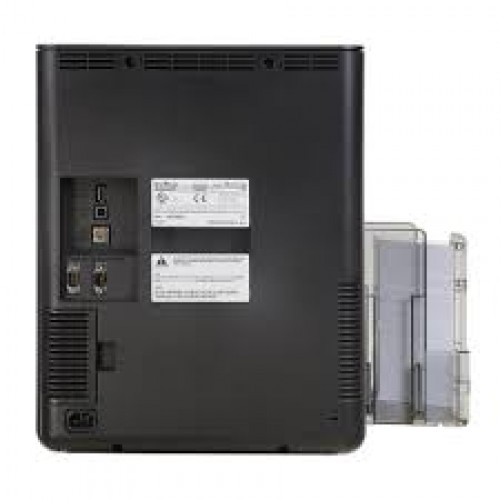

Interfaces
- USB (1.0, 1.1, 2.0, 3.0), cable supplied
- Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
Safety
- RFID locking key
- Support for security lock (Kensington® type)
- Centralized locking system to secure access to blank cards, ribbon and film (optional)2
- IPSec encrypted networking security
Card management and specifications
- Card feeder: 250 cards (0.76 mm – 30 mil)
- Card output hopper: 250 cards (0.76 mm – 30 mil)
- Reject tray capacity: 30 cards (0.76 mm – 30 mil)3
- Card thickness: 0.76 mm (30 mil), manual adjustment
- Card types:
- PVC cards
- Composite PVC cards
- PET-F cards
- PET-G cards
- Polycarbonate cards (PC)
- ABS cards
- Card format: ISO CR80 - ISO 7810 (53.98 x 85.60 mm – 3.370” x 2.125”)

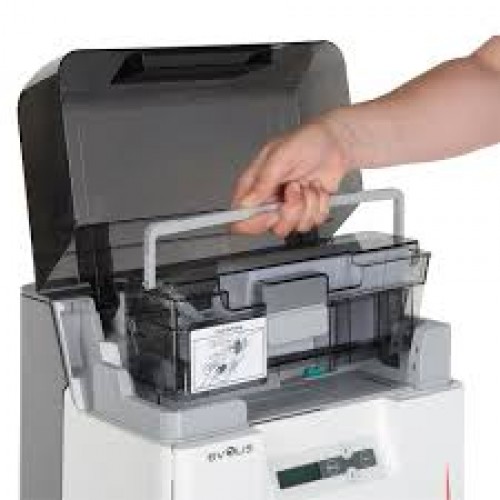

Evolis High Trust® Ribbons
To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.
Ribbon capacity:
- Clear transfer film: 500 prints/roll
- Holographic transfer film: 400 prints/roll
- YMCK: 500 prints/roll
- YMCKK: 400 prints/roll
- YMCKI ribbon (for smart cards, magnetic stripes and signature panels): 400 prints/roll
- YMCKH ribbon (for non PVC cards): 400 prints/roll
- YMCFK ribbon (F = UV ink): 400 prints/roll
Software
-
Compatible with Windows (32/64 bits): XP SP3, Vista,W7, W8, W10
-
Delivered with cardPresso XXS for designing and editing badges
- Internal database (unlimited records)
- Windows® (from XP onwards)

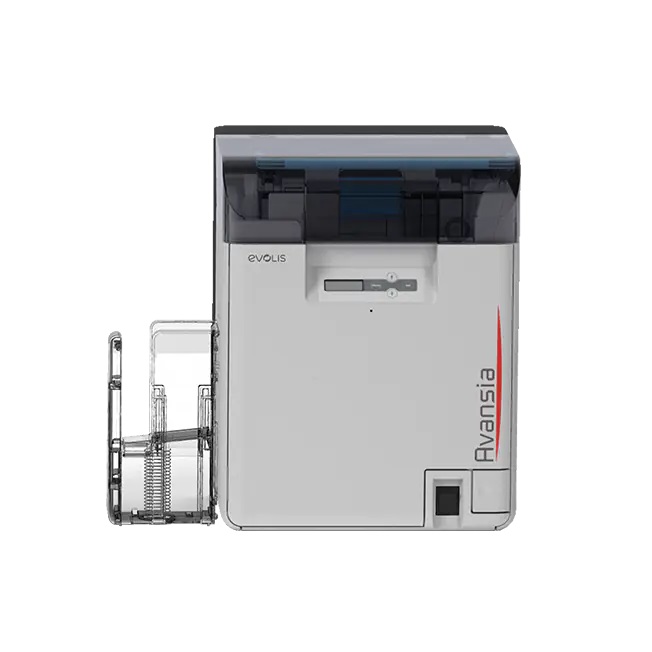

Display
- Two-line LCD display and LED status indicator
- Printer graphical notifications: empty input hopper, empty/low level ribbon alert...
Certifications and statement of compliance
- RoHS
- CE, FCC, UL, IEC
Size and weight
- Dimensions (H x W x D): 436 x 340 x 297 mm (17.16” x 13.38” x 11.69”)
- Weight: 20 kg (44.09 lbs)
Warranty4
- 3 years for printer, lifetime warranty on print head
1 Time measured from the card’s insertion detected by the sensor until the flip engine stops during ejection / 2 Option available upon request / 3 Delievered with printers that are upgraded with encoding options / 4 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons.
