RFK505
قسم التحكم المستقل
العلامة التجارية IDTECK

Key Feature

  • Fast Identification Speed
  • User Defined format Available
  • 16 Numeric Keypads with Back Lighting
  • Wall Mount (US, EU, Asian Gang Box Size)
  • Read Range : IDC80 / IDC170 Up to 4 inch (10cm)


• 125KHz Proximity / PIN Reader
• PSK Modulation
• User format available
• 16 Numeric Keypads with Back Lighting
• Current Time Display on the LCD
• External Error Signal
• External OK Signal
• Dual Tamper Switches
• Wall Mount (US, EU, Asian Gang Box Size)
• Reverse Polarity Protectio
• Supervisory Signal (Optional)
• Compatible Controller:All IDTECK Controller




Model

RFK505

Read Range
IDC80 / IDC170: Up to 4 inch (10cm)
Reading Time
(Card)
30ms
Power / Current
DC 12V / Max.150mA
Communication
RS232 / RS422 / RS485 (Max. 255ch)
Ethernet (External Ethernet Module required)
Baud Rate
9,600bps (default) / 4,800bps, 19,200bps
and 38,400bps (selectable)
Input Port
2ea : External LED Control
1ea : External Buzzer Control
Output Format
Card: 26bit Wiegand (default), ABA Track II (selectable)
Keypad: 26Bit Wiegand, 4/8 Burst for PIN (selectable)
LCD
Character LCD (2Linges x 16Char)
LED Indicator
3 Array LED Indicators
Beeper
Piezo Buzzer
Keypad
16 Key Numeric Keypad with Back Lighting
Operating
Temperature
-0°C < +50°C
-35°C < +65°C
Operating
Humidity
10% to 90% relative humidity non-condensing
Color
Dark Pearl Gray
Material
Polycarbonate
Dimension
(W x H x T)
150mm x 120m x 39.5mm
Weight
400g
Certification
FCC, CE, KCC, RoHS

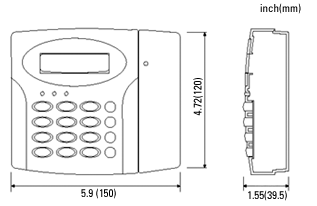

* Dimensions
